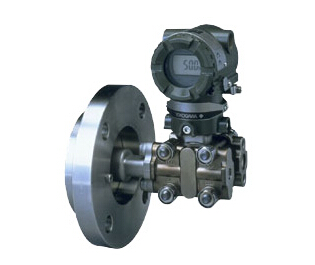

EJA210A/EJA220A法兰安装式差压变送器

EJA210A和EJA220A型高性能的法兰安装式差压变送器可用于测量结晶性或沉淀性液体的液位和密度。

产品信息

EJA210A和EJA220A型高性能的法兰安装式差压变送器可用于测量结晶性或沉淀性液体的液位和密度，然后将其转变成4～20mA DC的电流信号输出。

EJA系列支持BRAIN、HART和FOUNDATION™现场总线或PROFIBUS PA通信协议。

特性

-	卓越的性能和稳定性
	EJA系列采用单晶硅谐振式传感器技术。单晶硅对于压力或温度的变化不存在滞后现象，是非常理想的材料。单晶硅谐振式传感器将过压、温度变化和静压影响降为最低，从而提供无与伦比的长期稳定性。

-	小型轻量设计
	由于采用ASIC放大器设计使包装变小，以及膜盒构造和法兰的小型化，这款机型的重量降到了原有机型的一半。ASIC设计不仅减少了零件数量，而且提高了放大器的可靠性。

-	现场总线通信能力
	现场总线是双向数字通信系统，是配置仪表控制系统的革新技术，同时也是前景很好的更新换代产品，用于替换现在现场仪表中广泛使用的标准4~20mA模拟通信。 EJA系列提供两种现场总线模式，FOUNDATION™现场总线低压模式和PROFIBUS PA设备，以实现横河电机和其他供应商的协同工作。软件方面，EJA系列采用两个AI功能块计算差压和静压，从而实现灵活的仪表配置。

规格

	EJA210A / EJA220A 法兰安装式差压变送器
	M膜盒	H膜盒
测量范围	-100~100kPa (-400~400inH2O)	-500~500kPa (-2000~2000inH2O)
测量量程	1~100kPa (4~400inH2O)	5~500kPa (20~2000inH2O)
精度	±0.2%	±0.2%
防护等级	IP67，NEMA 4X，和JIS C0920防浸型
防爆规格	FM，CENELEC ATEX，CSA，IECEx
输出信号	4~20mA DC或FOUNDATION™现场总线或PROFIBUS PA两线制数字通信
电源	BRAIN和HART:10.5~42V DC (本安型: 10.5~30V DC) Fieldbus:9~32V DC (本安Entity模式9~24V DC，本安FISCO模式9~17.5V DC)
环境温度	-40~85℃ (-40~185℉) (普通型) -30~80℃ (-22~176℉) (内藏指示器)
过程温度	-40~120℃ (-40~248℉) (普通型)
最大工作压力	法兰额定压力
安装	法兰安装
法兰尺寸	EJA210A: 3-inch (80mm)，2-inch (50mm) EJA220A: 4-inch (100mm)，3-inch (80mm)
膜片材质 (高压侧)	SUS316L，哈氏合金C-276，钽材
法兰材质	S25C，SUS304，SUS316
外壳	铝合金或SUS316不锈钢(可选)

产品选型

产品系列 EJA210A [Process Flange size: 3-inch (80 mm)]

产品系列

型号代码

描述

EJA210A

. .

Flange-mounted 差压变送器 (Flush diaphragm type)

输出信号

-D . . . . . . .

-E . . .. . . . . .

-F . . . . . . . .

-G . . . . . . .

4-20mA 信号输出（BRAIN协议）

4-20mA 信号输出(HART协议),参照GS 01C22T01-00E

Digital communication (基础现场总线协议，参照GS 01C22T02-00E）

数字信号 (PROFIBUS PA协议，参照GS 01C22T03-00E)

测量范围（压力）

M . . . . . . .

H . . . . . . . .

1 to 100 kPa {100 to 10000 mmH2O} {4 to 400 inH2O} {10 to 1000 mbar}

5 to 500 kPa {0.05 to 5 kgf/cm2} {20 to 2000 inH2O} {50 to 5000 mbar}

High pressure side (Process flange side) wetted parts material*1*3

S# .

H# . .

T . .

[Diaphragm] [Others]

SUS316L SUS316*5

哈氏合金 C-276*4

哈氏合金 C-276*4 钽钽

Process flange rating

J1 . . . . . .

J2 . . . . . .

A1 . . . . . .

A2 . . . . . .

D2 . . . . . .

D4 . . . . . .

JIS10K

JIS20K

ANSI Class 150 P1 . . . . . . . . . . JPI Class150

ANSI Class 300 P2 . . . . . . . . . . JPI Class300

DIN PN10/16

DIN PN25/40

Process flange

size / material

D . . . . . .

E . .. . . . .

F . .. . . . .

3-inch (80 mm) / S25C

3-inch (80 mm) / SUS304*6

3-inch (80 mm) / SUS316*7

Low pressure side process connection

0 . . . .

1 . .. . . .

2 . .. . . .

3 . .. . . .

4 . .. . . .

5 . . . . . .

无过程连接 (Rc1/4 female on the cover flange)

with Rc1/4 电气过程连接

with Rc1/2 电气过程连接

with 1/4NPT 电气过程连接

with 1/2NPT 电气过程连接

无过程连接 (1/4 NPT female on the cover flange)

螺栓和螺母的材料l

A . .. . .

B . . . . .

C . .. . .

SCM435

SUS630

SUH660

Installation

-9 . . . . . . . . .

Horizontal impulse piping type, left side high pressure

电气连接

0 . . .

2 . . . .

3 . . . .

4 . . .

5 . . . .

7 . . .

8 . . . .

9 . . .

A . .. .

C . . . .

D . . .

G1/2 female, one 电气连接

1/2 NPT female, two 电气连接s without blind plug

Pg 13.5 female, two 电气连接s without blind plug

M20 female, two 电气连接s without blind plug

G1/2 female, two 电气连接s and a blind plug

1/2 NPT female, two 电气连接s and a blind plug

Pg 13.5 female, two 电气连接s and a blind plug

M20 female, two 电气连接s and a blind plug

G1/2 female, two 电气连接s and a SUS316 blind plug

1/2 NPT female, two 电气连接s and a SUS316 blind plug

M20 female, two 电气连接s and a SUS316 blind plug

显示面板

D . . .

E . . .

N . . .

Digital indicator

与范围设定开关数字指示器*2

(None)

N ..

Always N

Optional codes

/□ 可选范围

The ‘6’ marks indicate the most typical selection for each specification. Example: EJA210A-DMSA1D5A-92NN/□

The ‘#’marks indicate the construction materials conform to NACE material recommendations per MR01-75. For the use of SUS316 material, there may be certain limitations for pressure and temperature. Please refer to NACE standards for details.

*1: Low pressure side wetted parts material: Cover flange; SCS14A, Process connector; SCS14A,
Capsule; SUSF316L, SUS316L or ASTM grade 316L (Diaphragm; 哈氏合金 C-276 or ASTM N10276), 孔塞; SUS316 or ASTM grade 316

*2: Not applicable for 输出信号 code F and G.

*3: Users must consider the characteristics of selected 部件材料and the influence of process fluids. The use of inappropri- ate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can

Be very careful with highly corrosive process fluids such as hydrochloric acid, sulfuric acid, hydrogen sulfide, sodium hypochlorite, and high-temperature steam (150°C [302°F] or above). Contact Yokogawa for detailed information of the wetted parts material.

*4: 哈氏合金 C-276 or ASTM N10276.

*5: SUS316 or ASTM grade 316.

*6: SUS304 or ASTM grade 304. Forged version may be used.

*7: SUS316 or ASTM grade 316. Forged version may be used.

产品系列 EJA210A [Process Flange size: 2-inch (50 mm)]

产品系列

型号代码

描述

EJA210A

. .

Flange-mounted 差压变送器 (Flush diaphragm type)

输出信号

-D . . . . . .

-E . . . . . . . .

-F . . . . . . . . . .

-G . . .. . . . .

4-20mA 信号输出（BRAIN协议）

4-20mA 信号输出(HART协议),参照GS 01C22T01-00E

Digital communication (基础现场总线协议，参照GS 01C22T02-00E）

数字信号 (PROFIBUS PA协议，参照GS 01C22T03-00E)

测量范围（压力）

M . . . . . . . . . . . . . . . . .

H . . . . . . . . . . . . . . . . .

1 to 100 kPa {100 to 10000 mmH2O} {4 to 400 inH2O} {10 to 1000 mbar}

5 to 500 kPa {0.05 to 5 kgf/cm2} {20 to 2000 inH2O} {50 to 5000 mbar}

High pressure side (Process flange side) wetted parts material*1*3

W# . . . . . .

[Diaphragm] [Others]

哈氏合金 C-276*4 SUS316*5

Process flange rating

J1 . . . . . .

J2 . . . . . .

A1 . . . . . .

A2 . .. . . . .

D2 . . . . . .

D4 . . . . . .

JIS10K

JIS20K

ANSI Class 150 P1 . . . . . . . . . . JPI Class150

ANSI Class 300 P2 . . . . . . . . . . JPI Class300

DIN PN10/16

DIN PN25/40

Process flange

size / material

A . . . . . .

B . . . . . .

C . . . . . .

2-inch (50 mm) / S25C

2-inch (50 mm) / SUS304*6

2-inch (50 mm) / SUS316*7

Low pressure side process connection

0 . . . . .

1 . . . . .

2 . . . . .

3 . . . . .

4 . .. . . .

5 . .. . .

无过程连接 (Rc1/4 female on the cover flange)

with Rc1/4 电气过程连接

with Rc1/2 电气过程连接

with 1/4NPT 电气过程连接

with 1/2NPT 电气过程连接

无过程连接 (1/4 NPT female on the cover flange)

螺栓和螺母的材料l

A . . . . .

B . . . . .

C . . . . .

SCM435

SUS630

SUH660

Installation

-9 . . . .

Horizontal impulse piping type, left side high pressure

电气连接

0 . . .

2 . . .

3 . . .

4 . . .

5 . .

7 . .

8 . .

9 . .

A . .

C . ..

D . . .

G1/2 female, one 电气连接

1/2 NPT female, two 电气连接s without blind plug

Pg 13.5 female, two 电气连接s without blind plug

M20 female, two 电气连接s without blind plug

G1/2 female, two 电气连接s and a blind plug

1/2 NPT female, two 电气连接s and a blind plug

Pg 13.5 female, two 电气连接s and a blind plug

M20 female, two 电气连接s and a blind plug

G1/2 female, two 电气连接s and a SUS316 blind plug

1/2 NPT female, two 电气连接s and a SUS316 blind plug

M20 female, two 电气连接s and a SUS316 blind plug

显示面板

D .

E .. . .

N . . .

Digital indicator

与范围设定开关数字指示器*2

(None)

N .

Always N

Optional codes

/□ 可选范围

The ‘6’ marks indicate the most typical selection for each specification. Example: EJA210A-DMWA1A5A-92NN/□

*1: Low pressure side wetted parts material: Cover flange; SCS14A, Process connector; SCS14A, Capsule; SUS316L (Diaphragm; 哈氏合金 C-276 or ASTM N10276), 孔塞; SUS316

*2: Not applicable for 输出信号 code F and G.

contaminate the user's process fluids.

*4: 哈氏合金 C-276 or ASTM N10276.

*5: SUS316 or ASTM grade 316.

*6: SUS304 or ASTM grade 304. Forged version may be used.

*7: SUS316 or ASTM grade 316. Forged version may be used.

产品系列 EJA220A

产品系列

型号代码

描述

EJA220A

. . . . . .

Flange-mounted 差压变送器 (Extended diaphragm type)

输出信号

-D . . . . . .

-E . . . . . .

-F . . . . . . . . . . . . . . . . .

-G . . . . .

4-20mA 信号输出（BRAIN协议）

4-20mA 信号输出(HART协议),参照GS 01C22T01-00E

Digital communication (基础现场总线协议，参照GS 01C22T02-00E）

数字信号 (PROFIBUS PA协议，参照GS 01C22T03-00E)

测量范围（压力）

M . . . . . . . . . . . . . . . .

H . . . . . . . . . . . . . . . .

1 to 100 kPa {100 to 10000 mmH2O} {4 to 400 inH2O} {10 to 1000 mbar}

5 to 500 kPa {0.05 to 5 kgf/cm2} {20 to 2000 inH2O} {50 to 5000 mbar}

High pressure side (Process flange side) wetted parts material*1*5

S*2 #. . . .

W*3 #. . .

[Diaphragm] [Pipe] [Others]

SUS316L SUS316 SUS316*8

哈氏合金 C-276*6 SUS316 SUS316*8

Process flange rating

J1 . . . .

J2 . . . . .

A1 . . . . .

A2 . . . . .

D2 . . . . .

D4 . . . . .

JIS10K

JIS20K

ANSI Class 150 P1 . . . . . . . . . . JPI Class150

ANSI Class 300 P2 . . . . . . . . . . JPI Class300

DIN PN10/16

DIN PN25/40

Diaphragm extension

length (X2)

2 . . .. . .

4 . . . . . .

6 . .. . . .

X2=50 mm

X2=100 mm

X2=150 mm

Process flange

size/material

G . .. . .

H . . . .

J . . . .

D . . . .

E . . . .

F . . .. .

4-inch (100 mm) / S25C

4-inch (100 mm) / SUS304*9

4-inch (100 mm) / SUS316*10

3-inch (80 mm) / S25C

3-inch (80 mm) / SUS304*9

3-inch (80 mm) / SUS316*10

Low pressure side process connection

0 . . .

1 . . .

2 . . .

3 . . .

4 . . .

5 . .. .

无过程连接 (Rc1/4 female on the cover flanges)

with Rc1/4 电气过程连接

with Rc1/2 电气过程连接

with 1/4 NPT 电气过程连接

with 1/2 NPT 电气过程连接

无过程连接 (1/4 NPT female on the cover flanges)

螺栓和螺母的材料l

A . . .

B . . .

C . . . .

SCM435

SUS630

SUH660

Installation

-9 . . . . . . .

Horizontal impulse piping type, left side high pressure

电气连接

0 ..

2 ..

3 . .

4 . .

5 . .

7 .

8 .

9 .

A . . . . .

C . . . . . .

D . . .

G1/2 female, one 电气连接

1/2 NPT female, two 电气连接s without blind plug

Pg 13.5 female, two 电气连接s without blind plug

M20 female, two 电气连接s without blind plug

G1/2 female, two 电气连接s and a blind plug *7

1/2 NPT female, two 电气连接s and a blind plug *7

Pg 13.5 female, two 电气连接s and a blind plug *7

M20 female, two 电气连接s and a blind plug *7

G1/2 female, two 电气连接s and a SUS316 blind plug

1/2 NPT female, two 电气连接s and a SUS316 blind plug

M20 female, two 电气连接s and a SUS316 blind plug

显示面板

D .

E .

N .

Digital indicator

与范围设定开关数字指示器*4

(None)

N .

Always N

Optional codes

/□ 可选范围

The ‘6’ marks indicate the most typical selection for each specification. Example: EJA220A-DMSA12G5A-92NN/□

*1: Low pressure side wetted parts material: Cover flange; SCS14A, Process connector; SCS14A, Capsule; SUS316L (Diaphragm, 哈氏合金 C-276 or ASTM N10276), 孔塞; SUS316

*2: Applicable for 4-inch (100 mm) flange size (Process flange size/material G, H and J).

*3: Applicable for 3-inch (80 mm) flange size (Process flange size/material D, E and F).

*4: Not applicable for 输出信号 code F and G.

*5: Users must consider the characteristics of selected 部件材料and the influence of process fluids. The use of inappropriate materials can result in the leakage of corrosive process fluids and cause injury to personnel and/or damage to plant facilities. It is also possible that the diaphragm itself can be damaged and that material from the broken diaphragm and the fill fluid can contaminate the user's process fluids.

*6: 哈氏合金 C-276 or ASTM N10276.

*7: Not applicable when option code /E1 is specified.

*8: SUS316 or ASTM grade 316.

*9: SUS304 or ASTM grade 304. Forged version may be used.

*10: SUS316 or ASTM grade 316. Forged version may be used.

■ 可选范围S (For Explosion Protected type “Q”)

Item

描述

Code

Factory Mutual (FM)

FM Explosionproof Approval *1 *3 *4

Applicable standard: FM3600, FM3615, FM3810, ANSI/NEMA250 Explosionproof for Class I, Division 1, Groups B, C and D

Dust-ignitionproof for Class II/III, Division 1, Groups E, F and G Hazardous (classified) locations, indoors and outdoors (NEMA 4X) Temperature class: T6 Amb. Temp.: –40 to 60°C (–40 to 140°F)

FF1

FM Intrinsically safe Approval *1 *3 *4

Applicable standard: FM3600, FM3610, FM3611, FM3810, ANSI/NEMA250 Intrinsically Safe for Class I, Division 1, Groups A, B, C & D, Class II, Division 1, Groups E, F & G and Class III, Division 1 Hazardous Locations.

Nonincendive for Class I, Division 2, Groups A, B, C & D, Class II, Division. 2, Groups E, F & G, and Class III, Division 1 Hazardous Locations.

Enclosure: “NEMA 4X”, Temp. Class: T4, Amb. Temp.: –40 to 60°C (–40 to 140°F)

Intrinsically Safe Apparatus Parameters

[Groups A, B, C, D, E, F and G]

Vmax=30 V, Imax=165 mA, Pmax=0.9 W, Ci=22.5 nF, Li=730 µH

[Groups C, D, E, F and G]

Vmax=30 V, Imax=225 mA, Pmax=0.9 W, Ci=22.5 nF, Li=730 µH

FS1

Combined FF1 and FS1 *1 *3 *4

FU1

ATEX

ATEX Flameproof Approval *2 *4

Applicable standard: EN 60079-0, EN 60079-1

Certificate: KEMA 02ATEX2148 II 2G Ex d IIC T4, T5, T6

Amb. Temp.: T5; –40 to 80°C ( –40 to 176°F), T4 and T6; –40 to 75°C ( –40 to 167°F) Max. process Temp.: T4; 120°C (248°F), T5; 100°C (212°F), T6; 85°C (185°F)

KF21

ATEX Intrinsically safe Approval *2 *3 *4

Applicable standard: EN50014, EN50020, EN50284

Certificate: KEMA 02ATEX1030X II 1G EEx ia IIC T4, Amb. Temp.: –40 to 60°C Ui=30 V, Ii=165 mA, Pi=0.9 W, Ci=22.5 nF, Li=730 µH

KS2

*1: Applicable for 电气连接 code 2, 7 and C (1/2 NPT female).

*2: Applicable for 电气连接 code 2, 4, 7, 9, C and D (1/2 NPT and M20 female).

*3: Applicable for 输出信号 code D and E.

*4: Lower limit of ambient temperature is –15˚C (5˚F) when /HE is specified.
